DK4 Micro Switch Series

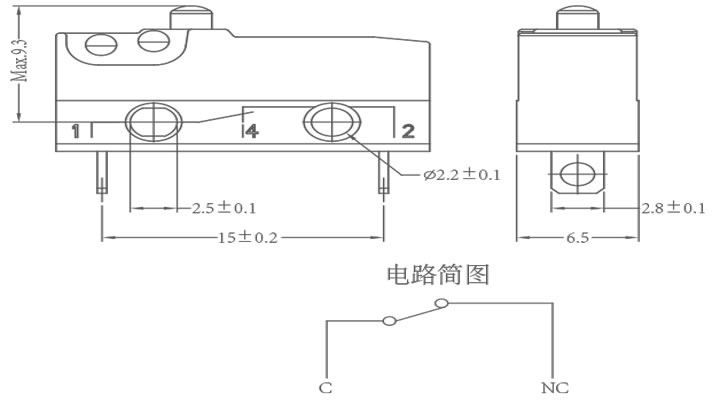

DK4-BT-006 Micro Switch Limit Switch

Contact Information

  • Hotline :

    +86-400-101-7717

  • Email :

    wdm@tdweipeng.com

  • Tel :

    +86-577-57158583

  • Fax :

    +86-577-62571439

Share:
Description



Switch technical Characteristics):

ITEM Technical parameter Value
1 Electrical Rating 10(1.5)A 250VAC
2 Contact  Resistance ≤50mΩ( Initial value)
3 Insulation Resistance ≥100MΩ(500VDC)
4 Dielectric Voltage between non-connected terminals 500V/0.5mA/60S
between terminals and the metal frame 1500V/0.5mA/60S
5 Electrical Life ≥10000 cycles
6 Mechanical Life ≥3000000 cycles
7 Operating Temperature -25~105℃
8 Operating Frequency Electrical:15 cycles


Mechanical:60 cycles

9 Vibration Proof Vibration Frequency:10~55HZ;


Amplitude:1.5mm;

Three directions:1H

10 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature:235±5℃


Immersing Time:2~3S

11 Solder Heat Resistance Dip Soldering:260±5℃ 5±1S


Manual Soldering:300±5℃ 2~3S

12 Safety Approvals UL、CSA、TUV、ENEC
13 Test Conditions Ambient Temperature:20±5℃


Relative Humidity:65±5%RH

Air Pressure:86~106KPa
