FSK18 WaterProof Micro Switch Series

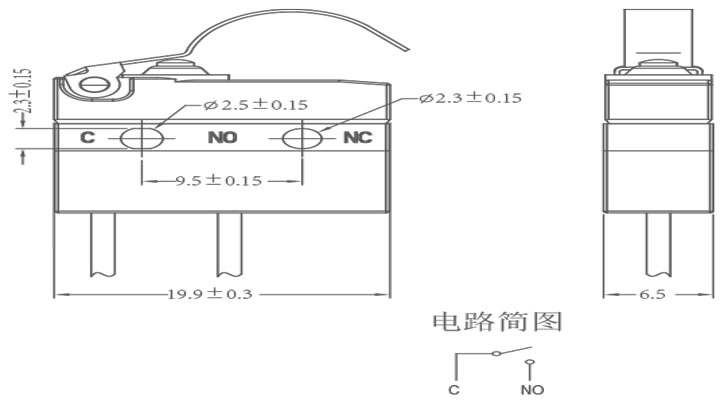

FSK-18-D-024 WaterProof Micro Switch

Contact Information

Share:
Description


Switch technical Characteristics):

ITEM Technical parameter Value
1 Electrical Rating 5(2)A 250VAC
2 Operating Force 1.0~5.0N
3 Pretravel 0.6~1.5mm
4 Contact  Resistance ≤50mΩ( Initial value)
5 Insulation Resistance ≥100MΩ(500VDC)
6 Dielectric Voltage between non-connected terminals 500V/0.5mA/60S
between terminals and the metal frame 1500V/0.5mA/60S
7 Electrical Life ≥10000 cycles
8 Mechanical Life ≥100000 cycles
9 Operating Temperature -25~85℃
10 Operating Frequency Electrical:15 cycles

Mechanical:60 cycles

11 Vibration Proof Vibration Frequency:10~55HZ;

Amplitude:1.5mm;

Three directions:1H

12 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature:235±5℃

Immersing Time:2~3S

13 Solder Heat Resistance Dip Soldering:260±5℃ 5±1S

Manual Soldering:300±5℃ 2~3S

14 Safety Approvals UL、CSA、CQC
15 Test Conditions Ambient Temperature:20±5℃

Relative Humidity:65±5%RH

Air Pressure:86~106KPa
