GQ Rocker Switch Series

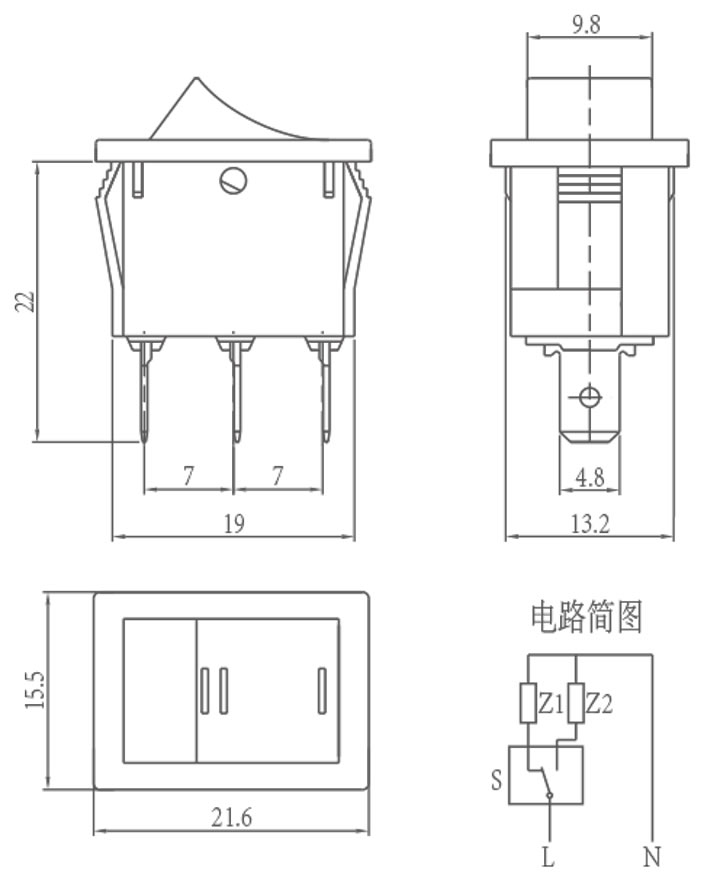

GQ111-1-003

Contact Information

Share:
Description


Switch technical Characteristics):

ITEM Technical parameter Value
1 Contact  Resistance ≤50mΩ(Initial value)
2 Insulation Resistance ≥100MΩ(500VDC)
3 Dielectric Voltage between non-connected terminals 1500V/0.5mA/60S
between terminals and the metal frame 3000V/0.5mA/60S
4 Electrical Life ≥10000 cycles
5 Mechanical Life ≥100000 cycles
6 Operating Temperature 0~125℃
7 Operating Frequency electrical:15 cycles

Mechanical:60 cycles

8 Vibration Proof Vibration Frequency:10~55HZ;

Amplitude:1.5mm;

Three directions:1H

9 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature:235±5℃

Immersing Time:2~3S

10 Solder Heat Resistance Dip Soldering:260±5℃ 5±1S

Manual Soldering:300±5℃ 2~3S

11 Safety Approvals UL、CSA、VDE、ENEC、TUV、CE、CQC
12 Test Conditions Ambient Temperature:20±5℃

Relative Humidity:65±5%RH

Air Pressure:86~106KPa
