HK14 Micro Switch Series

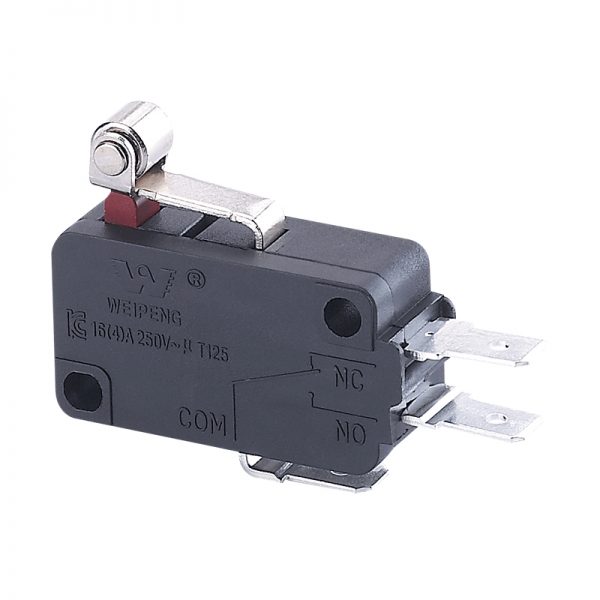

HK-14-16A-006 Micro Switchh

Contact Information

Share:
Description

1.Sate, reliable basic switch
2.Nice appearance,tight contiguration.Charactenistic:small contact dlearance,quick action, high sensitivity and small
3.operating travel.
4.Long lite, high reliablity
5.A variety of contact terminals
6.A varnety of temperature degree
7.A variety of levers
8.Adopt themosetting plastic or themoplastic
9.Widely usedinhome apliane elecroninc equipmentautomatic machine communication equioncar electron,apparatus and 10.instument,electric motion tool etc.








ITEM

technical parameter

Value

1

Contact Resistance

≤30mΩ(Initial value)

2

Insulation Resistance

≥100MΩ(500VDC)

3

Dielectric Voltage

between non-connected terminals

1000V/0.5mA/60S

between terminals and the metal frame

3000V/0.5mA/60S

4

Electrical Life

≥50000 cycles

5

Mechanical Life

≥1000000 cycles

6

Operating Temperature

-25~125℃

7

Operating Frequency

electrical:15cycles

Mechanical:60cycles

8

Vibration Proof

Vibration Frequency:10~55HZ;

Amplitude:1.5mm;

Three directions:1H

9

Solder Ability:More than 80% of immersed part shall be covered with solder

Soldering Temperature:235±5℃

Immersing Time:2~3S

10

Solder Heat Resistance

Dip Soldering:260±5℃5±1S

Manual Soldering:300±5℃2~3S

11

Safety Approvals

UL、CSA、VDE、ENEC、TUV、CE、KC、CQC

12

Test Conditions

Ambient Temperature:20±5℃

Relative Humidity:65±5%RH

Air Pressure:86~106KPa
