Koala axis

Technical Data：

•Switching voltage: 12 V AC/DC max.工作电压

•Switching current: 10 mA AC/DC max.工作电流

•Dielectric strength: 500 V / 50Hz耐压

•Durability: > 0.5 million actuations寿命

•Contact configuration: Single-pole contact接触形式：单极单头

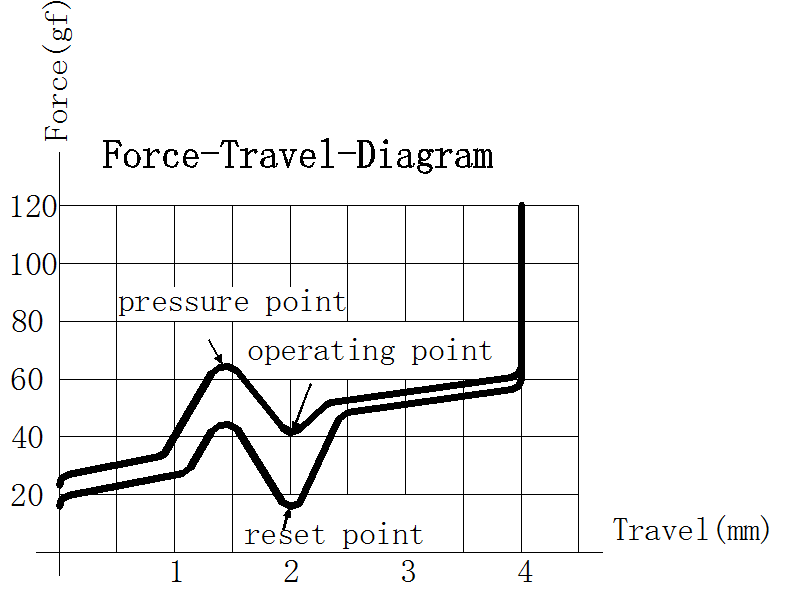

•Actuator travel: 4.0 ± 0.3 mm全行程

•Pretravel: 2.0 ± 0.6 mm预行程

•Initial force: 20gf min.初始力度

•Operating force:67±20gf.操作力度

•Total travel force: 62 ± 20 cN触底力度

•Bounce time: < 5 ms (during actuation with 0,4 m/s)转换时间

•Spring: Stainless steel（gold-plate）镀金弹簧

•Contacts: High-quality gold alloy黄金触点

•Storage Temperature: 5°C to 40°C储存温度

•Operating Temperature: -40°C to 70°C使用温度
