GNY51 Push Button

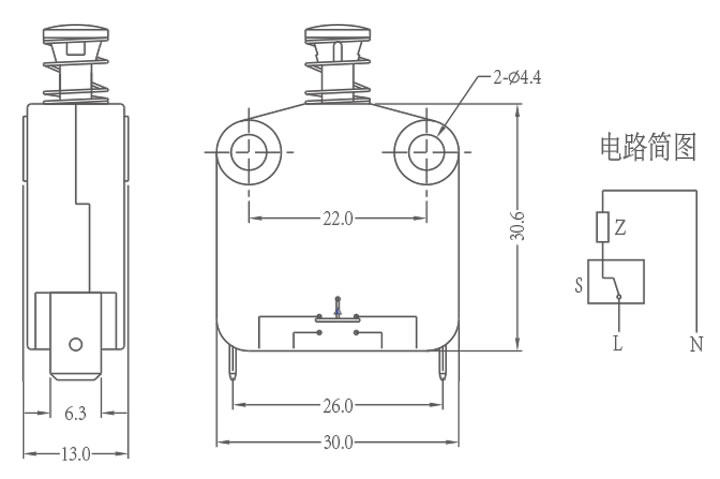

GNY51-1-05 Push Button

Contact Information

  • Hotline :

    +86-400-101-7717

  • Email :

    fyj@tdweipeng.com

  • Tel :

    +86-577-57158583

  • Fax :

    +86-577-62571439

Share:
Description


Switch technical Characteristics):

ITEM Technical parameter Value
1 Electrical Rating 16(3)A 125/250VAC
2 Contact  Resistance ≤50mΩ( Initial value)
3 Insulation Resistance ≥100MΩ(500VDC)
4 Dielectric Voltage between non-connected terminals 500V/0.5mA/60S
between terminals and the metal frame 1500V/0.5mA/60S
5 Electrical Life ≥50000 cycles
6 Mechanical Life ≥100000 cycles
7 Operating Temperature 0~125℃
8 Operating Frequency Electrical:15 cycles

Mechanical:60 cycles

9 Vibration Proof Vibration Frequency:10~55HZ;

Amplitude:1.5mm;

Three directions:1H

10 Solder Ability: More than 80% of immersed part shall be covered with solder Soldering Temperature:235±5℃

Immersing Time:2~3S

11 Solder Heat Resistance Dip Soldering:260±5℃ 5±1S

Manual Soldering:300±5℃ 2~3S

12 Safety Approvals UL、CSA、TUV、CQC、CE
13 Test Conditions Ambient Temperature:20±5℃

Relative Humidity:65±5%RH

Air Pressure:86~106KPa
